tX-USB hub


Precaution

Please read this instruction carefully before use.

  • Do not attempt to disassemble or modify the product.
  • Keep the product away from the external shocks or vibrations.
  • Do not use the damaged or peeled cables.
  • Do not use the unit outdoors.
  • Product specifications and features are subject to change without notice.

Supplied components

  • tX-USBhubEX Unit
  • Operating instruction


Specification

  • USB host interface port
    • USB 2.0 Type B connector
  • USB output Port
    • Type A USB 2.0 connector x 2
    • USB port power on/off switch x 2
  • USB interface chip set
    • USB 2.0 Compliant HUB controller
    • HS(480 Mbps), FS(12 Mbps), LS(1.5 Mbps) support
  • Power input
    • Input voltage : +6.5V ~ +9Vdc
    • Input current : 2A max
    • 5.5mm OD, 2.1mm ID adaptor jack
  • USB port output power
    • Output voltage : +5.0V(+0.5V, -0.25V)
    • Over current protect : 0.8A at 20°C
    • Recommend output current : 0.5A >
  • Operating environment
    • Operating temperature : +10 ~ +30℃
    • Storage temperature : 0 ~ +40℃
    • Operating & storage humidity : 10% ~ 90%

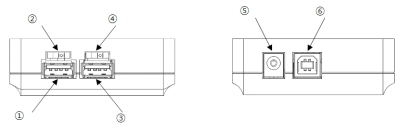

Product Outline


  1. USB output port no. 1 : Connect to USB audio device.
  2. Power switch of USB output port no. 1 : Switch ON, if the connected USB audio device requires USB power. If not, switch OFF.
  3. USB output port no. 2 : Connect to USB audio device.
  4. Power switch of USB output port no.2 : Switch ON, if the connected USB audio device requires USB power. If not, switch OFF.
  5. Power input jack : The power, 6.5Vdc ~ 9Vdc, 2A, is required to operate the unit. (jack size : 5.5mm OD, 2.1mm ID) A supplied 9V/2A adopter, mBPS-d2s or sPS-1000 can be used.
  6. USB input port : Connect to an USB port of your PC or server by USB cable (Type A - to - Type B).

Recommend using one of USB ports only. If you use both USB ports at the same time, sound quality may degrade.


Product user guide

  • tX-USBhubEX is 2 ports USB2.0 external hub designed for the best USB audio performance.
  • Put the unit on a proper place, and connect to an USB port of PC or server by USB cable (Type A - to - Type B)
  • Connect the supplied 9Vdc, 2A power wall adopter, mBPS-d2s or sPS-1000 power supply to the power input jack to operate the unit.
  • And then the green LED of the unit will be lit on and automatically recognized as a USB hub without additional driver installation.
  • If the connected USB audio device requires +5V, switch ON the power switch, if not, switch OFF.
  • Connect one of USB output ports to USB Audio device by USB cable(Type A - to - Type B)


Warranty Information

Free warranty service

  • In case of the defect is found caused by the design or the production flaw while using the device properly, a manufacturer is responsible for the faulty product and the free warranty service for 1 year from the date of purchasing.
  • Even in the warranty service period, malfunction or damage of products caused by the inevitable incident such as a natural disaster is not subject of the free warranty service.

Warranty service at a cost

  • The product that free warranty service period is expired.
  • Malfunction of the product caused by a user’s fault.
  • Malfunction of the product caused by incidents.
  • Malfunction of the product caused by a natural disaster such as earthquake, flood, lightning & etc.
  • In case of the warranty service at a cost, a customer should cover the transportation costs.

Samples of a user’s fault

  • In case of attempts to disassemble or modify the device
  • In case of not following the instructions on this manual

Please read this operating instructions & Q&A board on our website carefully before asking for the warranty service.
