Eunhasu is a web-based GUI to control network music players which was made on Linux OS. It has an easy and simple to use functions via a web GUI. Eunhasu can be used with PCs or various apps in smart devices.

• Web GUI
  • Easy system configuration
  • Selectable music player applications
  • Selectable and configurable USB audio devices
  • Network share folder and USB storage device setting
• Roon Ready
• Roon Server _{sMS-1000SQ feature}
• MinimServer _{sMS-1000SQ feature}
• DLNA audio renderer, OpenHome support
• MPD (Music Player Daemon)
• LMS (Logitech Media Server)
• Squeezelite
• HQPlayer Network Audio Adapter
• Shairport
• LibreSpot
• Multi-zone network playback

• sMS-200
• sMS-200ultra
• sMS-1000SQ

Please click a link to show a description of each service.

• Roon Ready
• Squeezelite / Logitech Media Server
• MPD / DLNA renderer
• HQPlayer NAA
• Shairport
• LibreSpot

• Roon Server
• Squeezelite / Logitech Media Server
• MPD / DLNA renderer
• HQPlayer NAA
• Shairport
• MinimServer
• LibreSpot
• CD Ripping

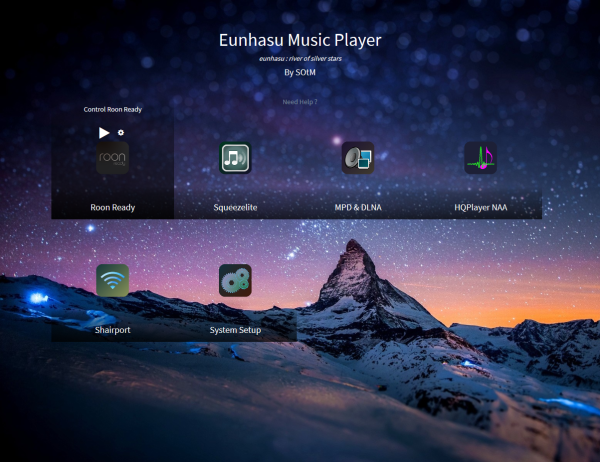

Open the web browser on a PC or smart device and connect to http://eunhasu. On Apple^® devices, connect to http://eunhasu.local. You can get the Eunhasu device’s IP address or link from http://sotm-audio.com/my if you’re using Android device. It works based on an IPv4 network. If either of the above paths do not make the connection to Eunhasu Web GUI, check the router setup to find out the IP address of your device_{(e.g. sMS-200 or sMS-1000SQ)}. And then enter your device's IP address like http://xxx.xxx.xxx.xxx directly into the browser to connect to the Eunhasu Web GUI. If you still can’t access the Eunhasu Web GUI, you will need to check that your network status or power connection is okay. If you connect to Eunhasu Web GUI successfully, you will see the home screen as like the image below.

To select a function on the Web GUI, mouse over the desired icon and action buttons( ) will appear. On smart devices, touch the desired player icon and then the action buttons will appear like when using a mouse.

For example, in the case of the Roon Ready service, you can change states to 'Active' by icon click.

'Active' states. Not only Roon Ready service but other services have a similar screen.

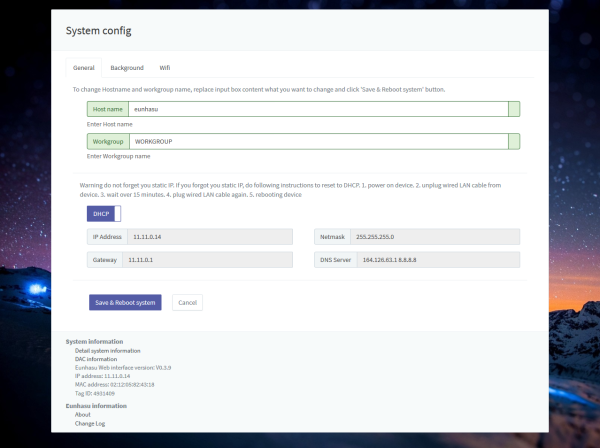

Here you can change the system name and background image, setup wifi, adjust library settings, perform a system upgrade, reboot or power off.

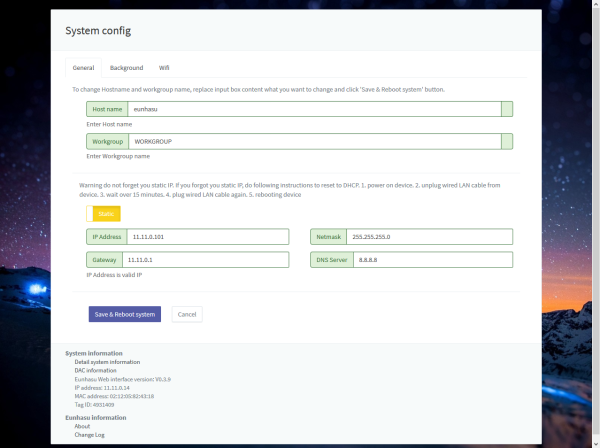

• Host name: The name of the sMS-200 which appears on the network. If you use multiple Eunhasu-enabled device on the network, you will need to use a different host name for each device. English only and no spaces are allowed for the name.
• Workgroup: A workgroup name for shared folders on the network, normally “WORKGOUP” is used, but can change if required. English only and no spaces are allowed for the name.
• IP: Dynamic and static IP settings.

• Save & Reboot system: Save the information and reboot the product.
• Cancel: Go back to the home screen.

This feature works for sMS-200, sMS-200ultra and sMB-Q370 from the Eunhasu firmware version no.5.51. The sMS-1000SQ can be supportive as well by enabling SpeedStep feature in the BIOS mode, refer to the image below.

If the device is not supportive to use CPU frequency feature, this feature will be auto-disabled from the Eunhasu firmware version no.5.51.

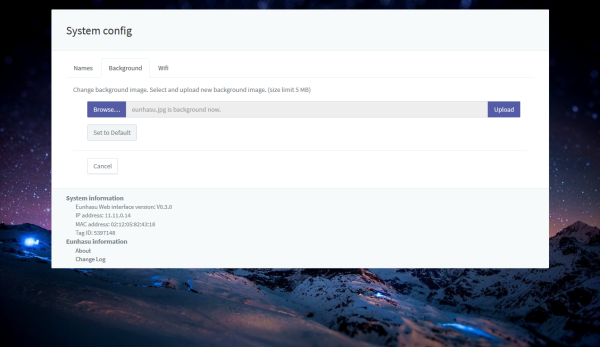

To change background, only jpeg and png formats are allowed. If it's not applied after uploading a file, that could be caused by web browser cache feature. Plase reload the page.

Please refer to how_to_use_wifi_in_eunhasu page.

Set up the path for the network library and enable the USB storage device to use.

• NAME: A library folder name appearing on Logitech Media Server or MPD. Only English, no spaces or numbers.
• PATH: A network sharing folder path. The path should be formatted like the screen shot.
• ID: Enter an ID if it is required to access the network sharing folder.
• PW: Enter a password if it is required to access the network sharing folder.
• Save & Use: Save the information you entered and use it.
• Save: Save the information you entered but not use it.
• Remove: Remove the information you entered.
• Automatic USB storage mount: Enable or disable the USB storage device, up to 2 USB storage devices can be used.
  • Check 'Automatic USB storage mount' to be enabled. The USB storage device will be auto-recognized and assign as the music folder on Logitech Media Server or MPD as the USB1 or USB2 folder.
• Sync mode mount: Enable or disable sync mode when storage is mounted.
  • Check 'Sync mode mount' to be enabled, the USB storage device will be mounted as sync mode. It is synchronous attachment which makes files in the storage more safety but might be slow system.
• Save changes: Save the new or modified information you entered.
• Cancel: Go back to the home screen.

• An external USB storage device in exFAT format is supportive from Eunhasu V0.2.7. And multi partitions cannot be mounted normally, we recommend connecting a 1 partition USB storage device.

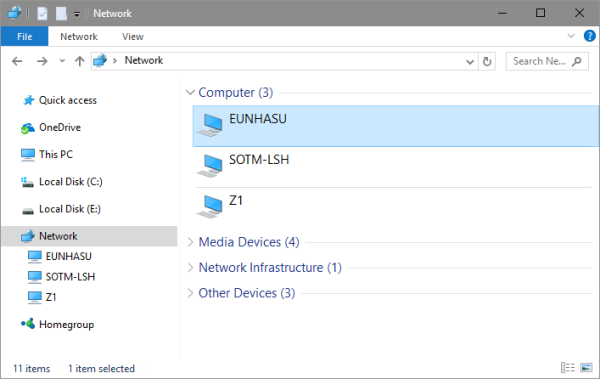

You can access the Eunhasu share folder to manage music files. Select 'EUNHASU' in the 'Network' part of Explorer. If you have serveral Eunhasu-enabled devices, please change system name because it could cause conflict in the network.

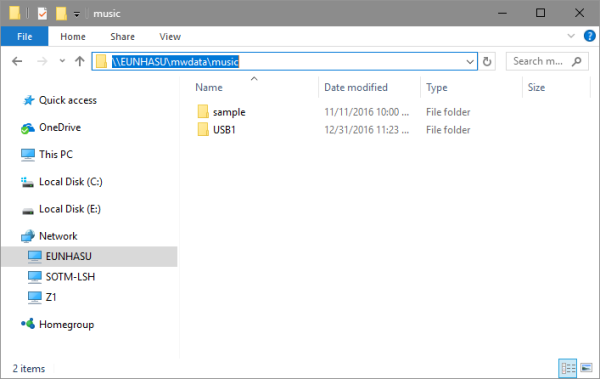

You can access by the direct path, \\EUNHASU\mwdata\music

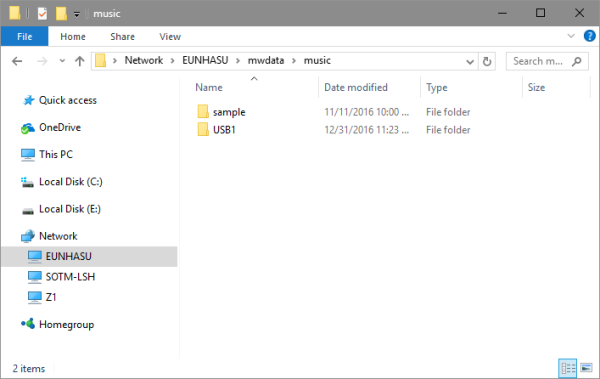

The image below shows the screen after you enter 'mwdata'. ;mwdata' is a name of share folder in Eunhasu.

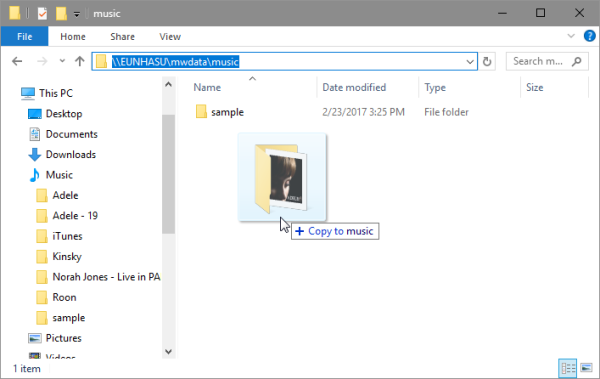

If you want to copy files into the sMS-1000SQ music directory, drag and drop files to the path, \\EUNHASU\mwdata\music, like the screen shot below:

If you want to copy files into the sMS-1000SQ music directory which has the additional internal storage drive installed, drag and drop files to the path, \\EUNHASU\mwdata\music\HDD1

If you want to check the music files in the external USB storage drive connected into sMS-1000SQ, please check the path, \\EUNHASU\mwdata\music\USB1

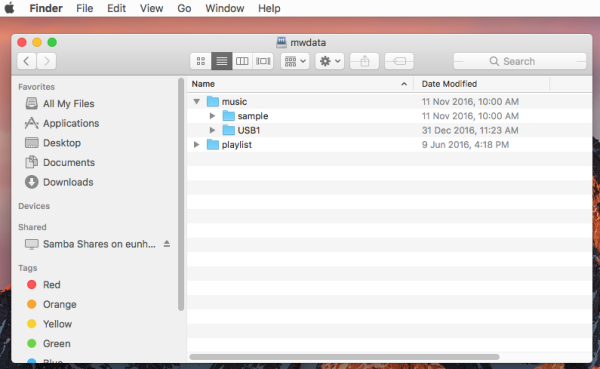

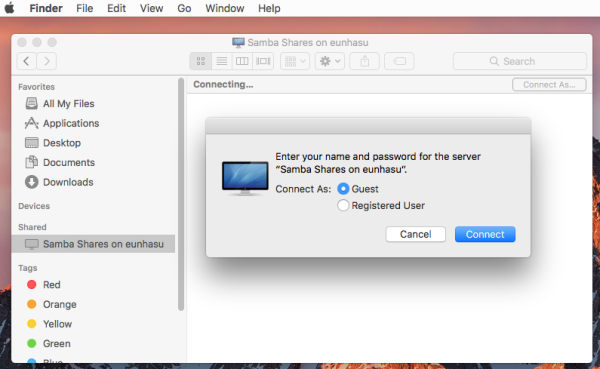

You can access Eunhasu share folder by Finder. Please connect as 'Guest' id to access.

Upgrade your system.

• Upgrade now: It stops all services and upgrade the software.
• Cancel: Go back to the home screen.

The progress bar of the upgrading would be shown when the upgrade starts.

If an upgrade is available, the yellow icon shows up at right of “System Setup”.

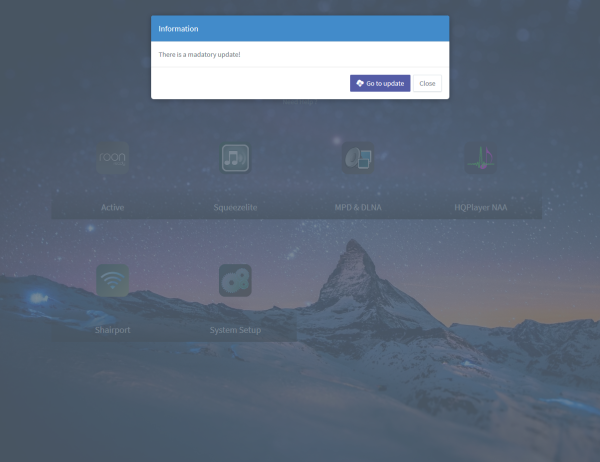

If there is a mandatory upgrade, Eunhasu shows a pop-up window to notify.

Reboot and power off system.

Reboot will take 2~3 mins. It depends on device settings like connection storage or other accessories.

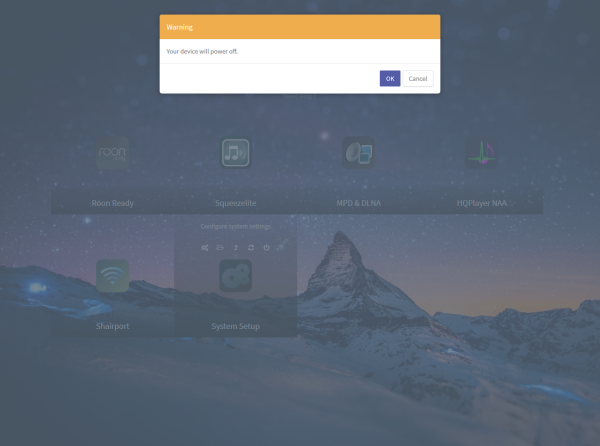

'power off' will not work immediately. It takes a few seconds. If you unplug the power cord, your storage device might be damaged. Please use the 'power off' function when you need to power off the device.

• dhcp_server_for_windows
• direct_connection

https://kb.roonlabs.com/FAQ:Some_characters_are_not_displaying_properly

Only for sMS-200(or sMS-200ultra), to initialize whole system.

• Burning mSD card image

Only for sMS-1000SQ, to initialize whole system.

• Installing Eunhasu x86

• how_to_install_ickstream_app_in_lms

Below chart is the Native DSD DAC list supported in Eunhasu.

To check whether your DAC natively supports DSD playback in Eunhasu, please follow the steps below. Click the DAC information link at the bottom side of System config page.

Check the USB ID of the DAC that is connected to the Eunhasu device at DAC Information page.

If there is a matching USB ID in Supported Native DSD DAC list, it means it supports Native DSD playback.

If there is no matching USB ID in Supported Native DSD DAC list, please email us the request with the DAC information page. After checking the DAC information, we will make the Native DSD playback available on Eunhasu.
